XOR-75-22

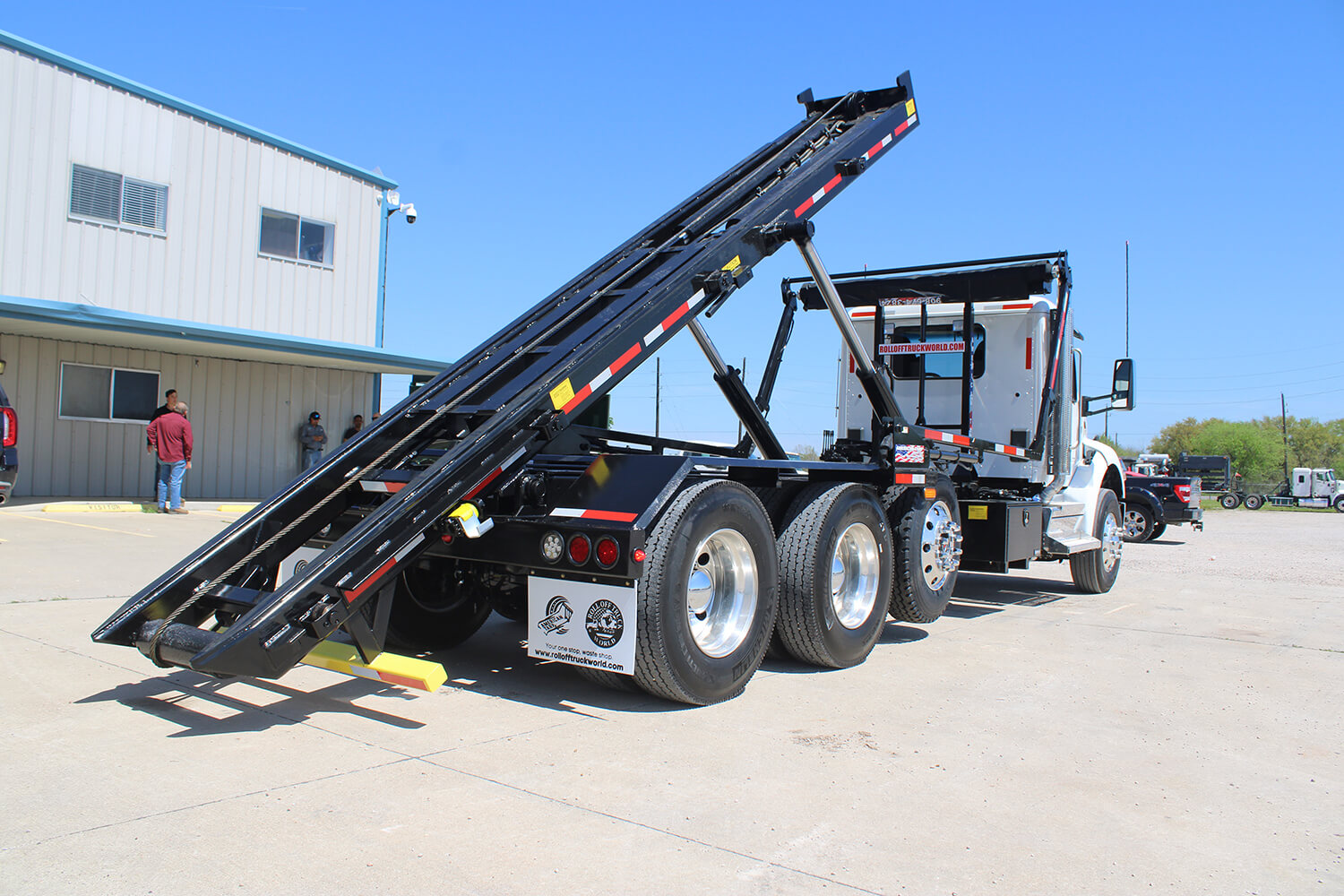

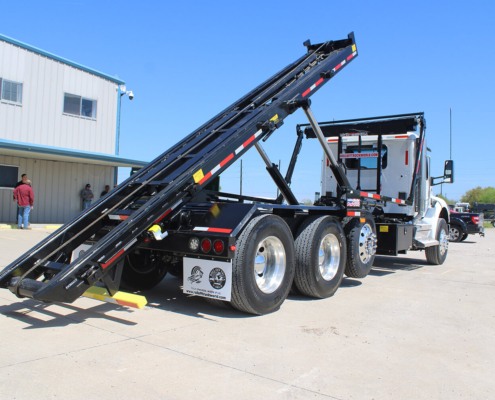

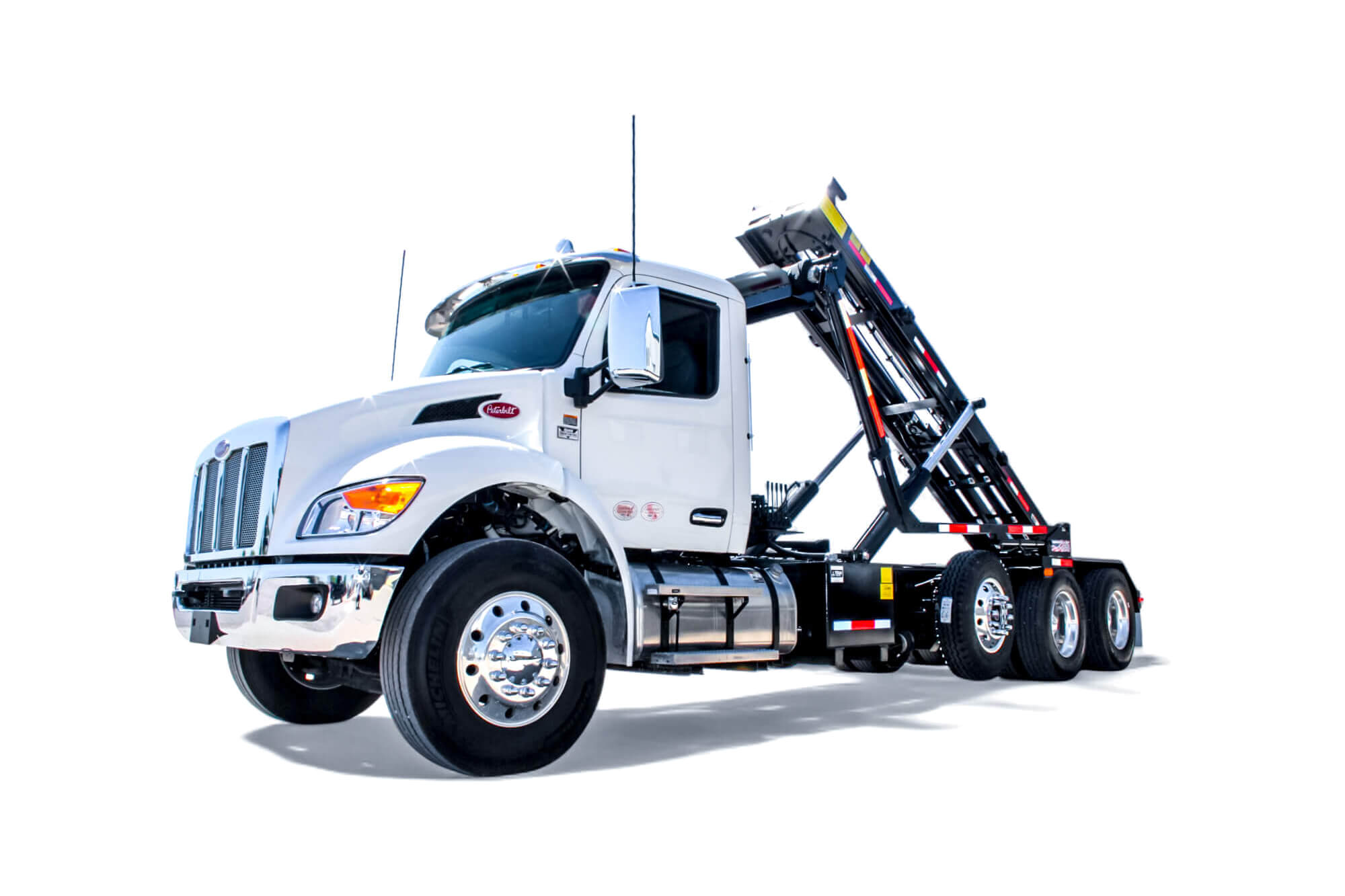

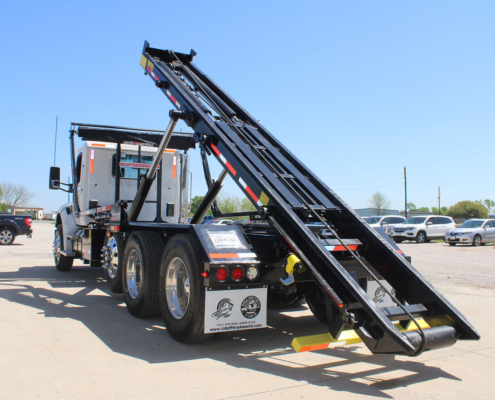

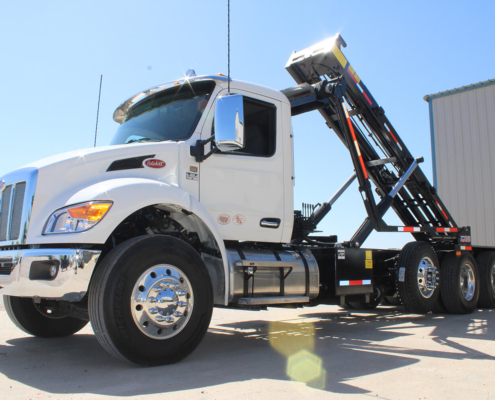

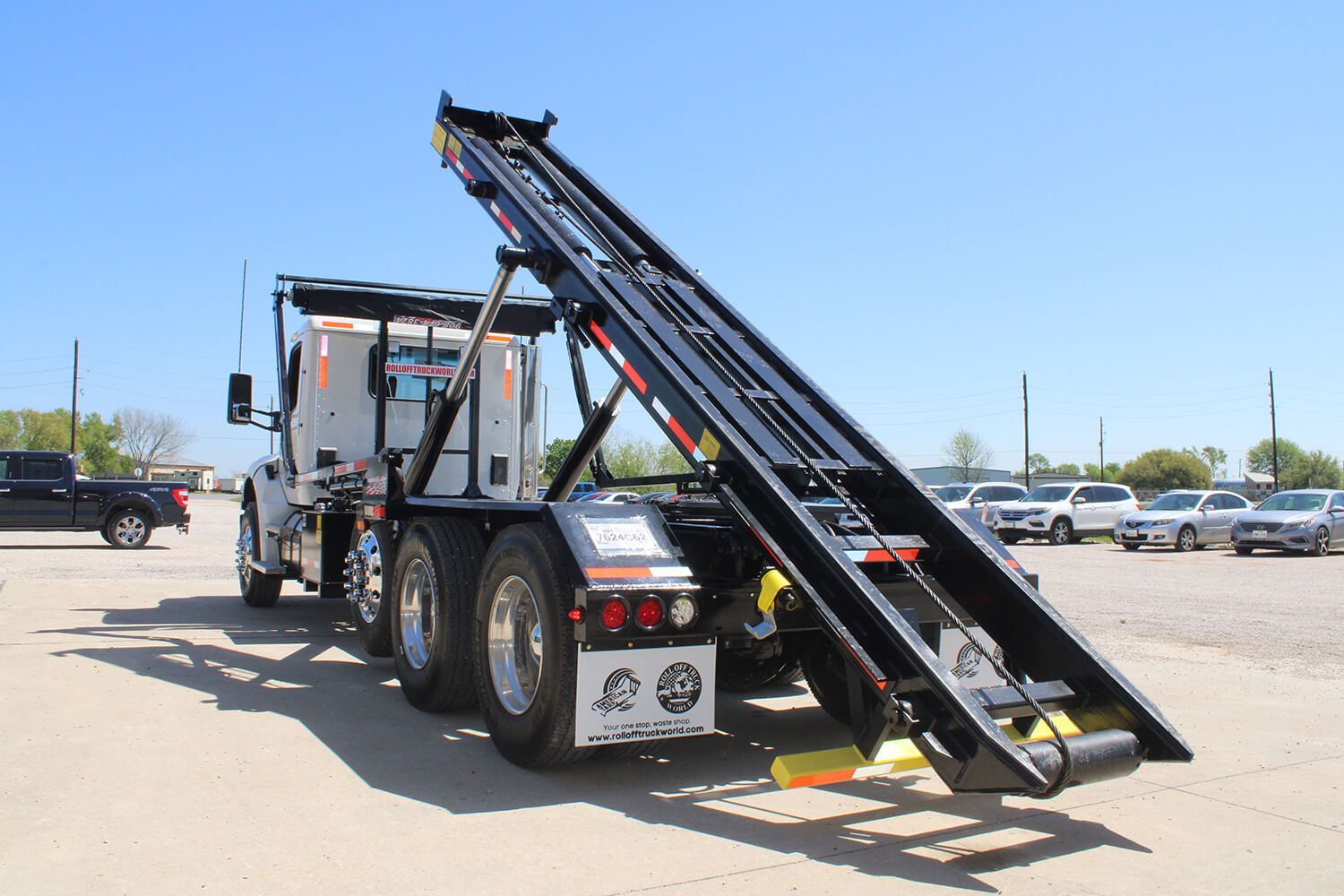

Titan XOR-75-22 for Multi Axle applications is used for the most extreme environments. Usually paired with a third axle or quad axle set up to maximize the benfits of the 75,000lbs capabilities to achieve maximum payload and carrying capacity. It utilizes industry standard outside rail hoist.

FEATURES

SPECIFICATIONS:

RATED CAPACITY: 75,000LBS

RAIL WIDTH: 36″

WINCH TYPE: REECVING HYDRAULIC CYCLINDERS

HOIST LENGTH: 23.3 FT

DUMP ANGLE: 48 DEGREES

OPERATING PRESSURE: 2,500 PSI

STRUCTURAL COMPONENTS

HEAVY DUTY 10″ X 4 X 3/8″ MAIN FRAME TUBE
HEAVY DUTY 4″ X 4″ X 3/8″ SUBFRAME

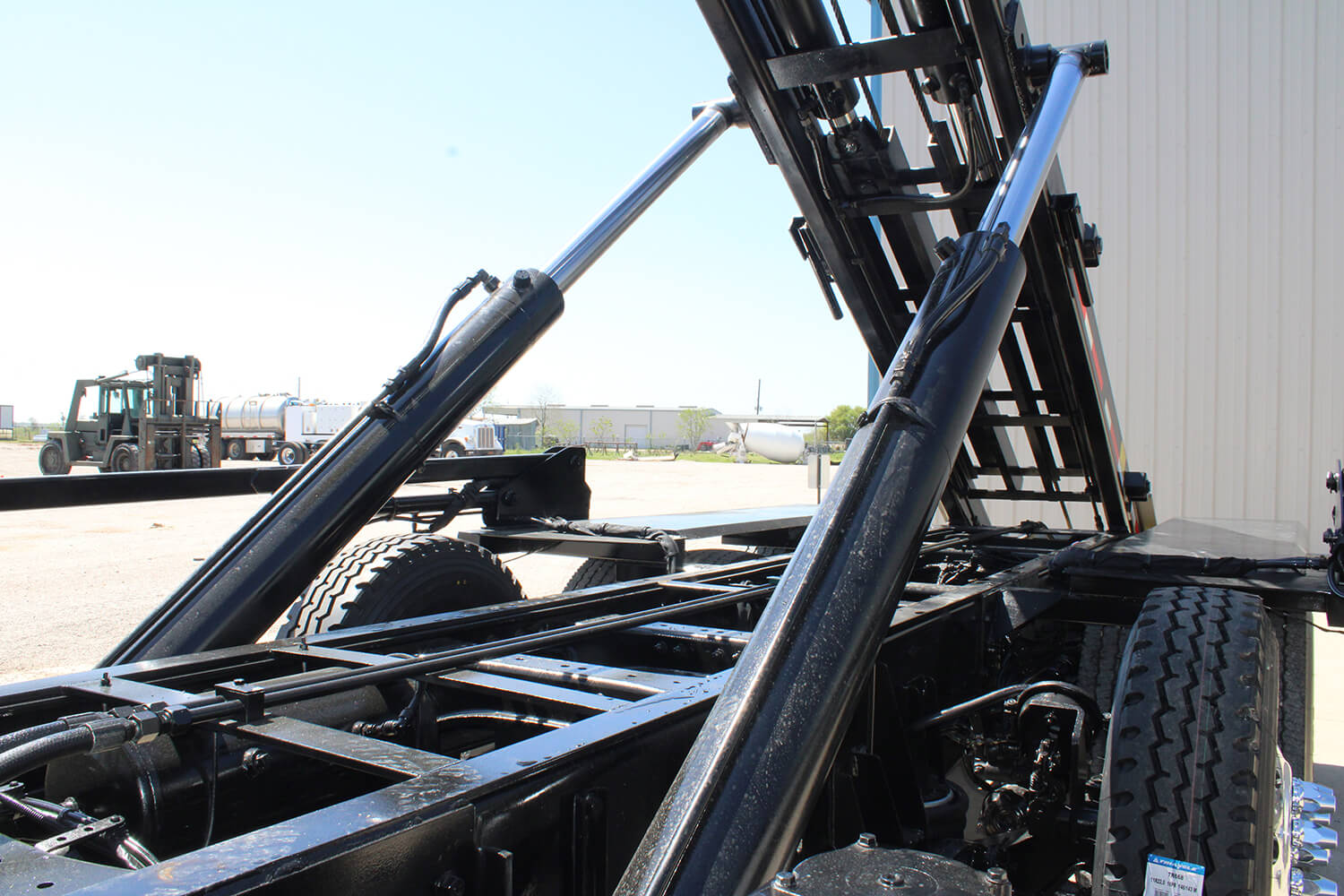

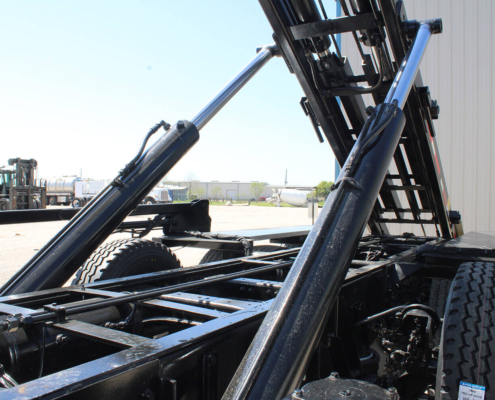

DUAL OUTBOARD LIFT CYLINDERS
DUAL CABLE REEVING CLYLINDERS
2 1/2″ DIAMETER REAR HINGE PINS
PINTLE HITCH READY APRON
ADJUSTABLE DOT BUMPER FOR PUP TRAILERS
3″ DIAMETER LIFT CYLINDER SHAFTS
3/8 INCH X 5-INCH WINCH CYLINDER ROD COVERS
6 INBOARD AND OUTBOARD REINFORCEMENT CAGE FOR OUTSIDE ROLLERS
HEAVY DUTY CONTAINER LONG SILL SUPPORTS ON REAR OF HOIST MAINFRAME 48″ x 3/4″ x 4″ x 4″
48 GALLON HYDRAULIC OIL RESERVOIR WITH SIGHT GLASS, FILTER ELEMENT & TEMPERATURE GAUGE

SAFETY ENHANCEMENTS

HOIST UP ALARM
HOIST UP BODY LIGHT WITH BODY SWITCH SENSOR
BACK UP ALARM
LED WORK LIGHTS
AUTOMATIC AIR BAGS DEFLATION SYSTEM CONNECTED TO PTO SWITCH FOR (AIR RIDE CHASSIS)

OPERATOR CONTROLS

ALUMINUM ENCLOSED AIR CAB JOYSTICK CONTROLS WITH PTO SWITCH, LED LIGHTS SWITCH
5 SPOOL OUTSIDE HOIST VALVE CONTROL

OPTIONS

OPTIONAL FEATURES

BEHIND CAB MOUNTED HYDRAULIC RESERVOIR TANK
TOOL BOXES (STEEL-POLISHED-ALUMINUM)
AUXILIARY STOPS FOR DIFFERENT CONTAINER LENGTHS
POLY / STEEL / ALUMINUM FENDERS
TARPING SYSTEMS
RATCHET TIE DOWN STRAPS
PINTLE HOOK KIT WITH ELECTRICAL, AIR CONNECTIONS & D RINGS
HYDRAULIC LINE PLUMBING FOR LIVE PUP OR PINTLE HITCH TRAILER
FRONT MOUNT PUMP PTO
ON BOARD SCALE SYSTEMS
EXTRA WORK LIGHTS & SAFETY LIGHTS
REAR VIEW & SIDE CAMERA SYSTEMS CONNECTIONS
INTEGRATED HYDRAULICS CAN BE USED, IF HYDRAULIC TARPING IS USED

APPLICATIONS

INDUSTRIES SERVED

SOLID WASTE MANAGEMENT
CONSTRUCTIUON & DEBRIS
OIL FIELD
TRANSPORTATION
RECYCLING
SCRAP & METAL
DEMOLITION
MATERIAL HAULING & DELIVERY
SEASONAL JOBS FOR EXAMPLE (LEAF BLOWING, CHIPPER BODIES, TEEE & LANDSCAPE, SALT SPREADERS AND MORE)
TOWING & FLATBED
PALLET DELIVERY
MULTIPLE ATTACHMENTS COVERING A WIDE RANGE OF APPLICATIONS MAXIMIZING TRUCK VERSATILITY
