AMERICAN MADE. AMERICAN TOUGH.

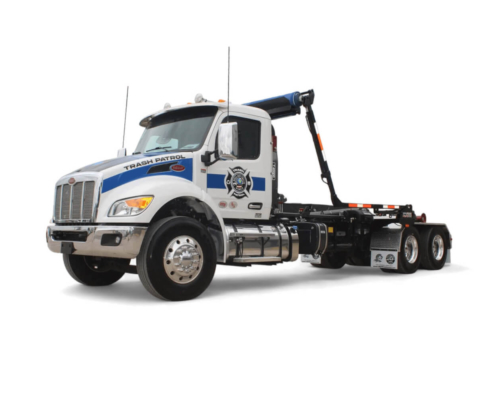

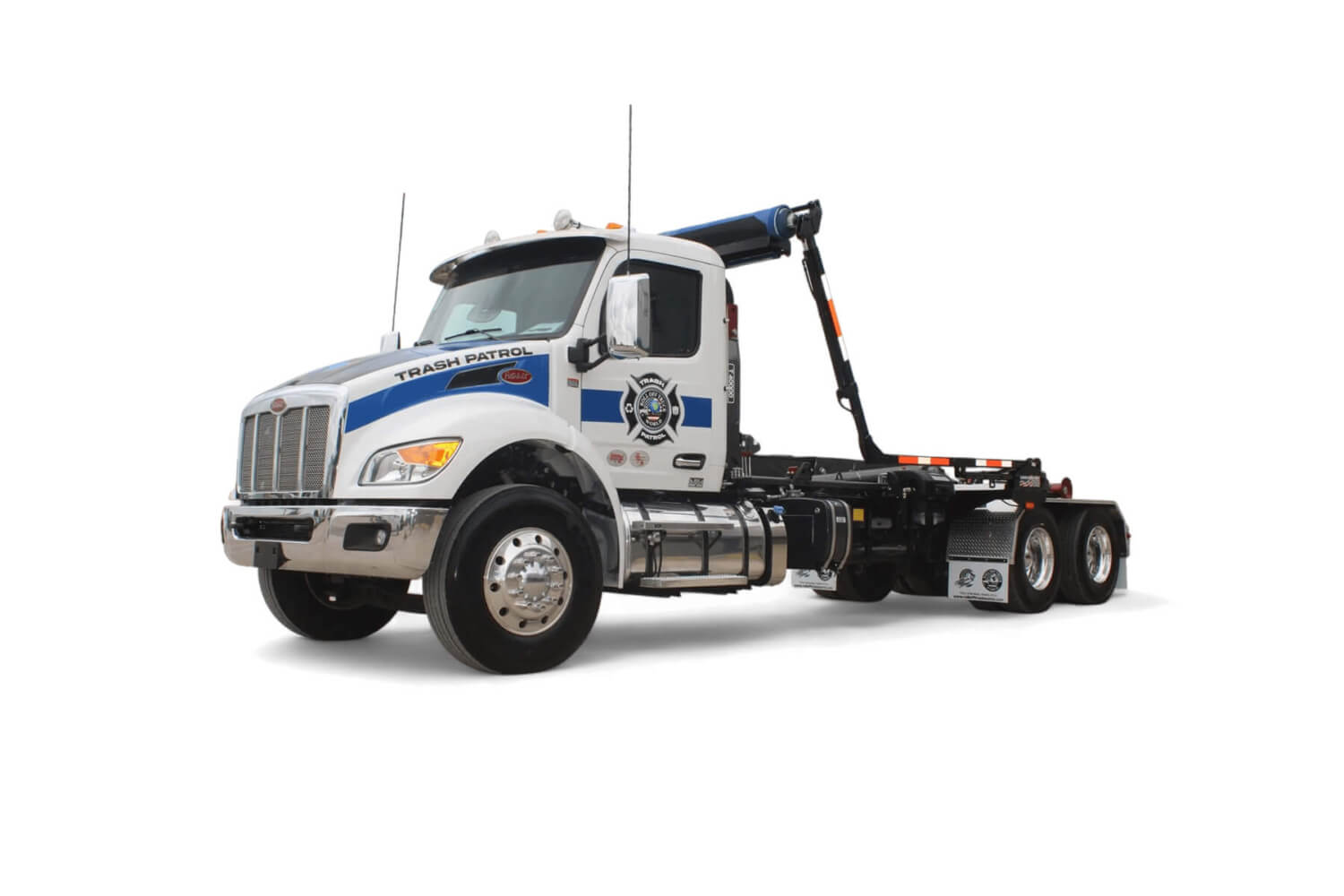

Bob Unilift T 26000 is used in single axle applications, it achieves the optimum rated capacity rating and is best paired with Class 6-7 chassis to maximize payload.
FEATURES
MODEL: T 26000
RATED CAPACITY: 26,000 LBS
HOOK HEIGHT: 54″62″
CONTAINER LENGTHS: 14-16 FT
DUMP ANGLE: 49°
WEIGHT:
OPERATING PRESSURE: 3,335 PSI
OIL TANK US GALLLONS: 16
HOOK HEIGHT
HOOK HEIGHT: 54″62″
OPTIMAL BODY LENGTHS
14-16 FT
TARP SYSTEMS
AMERICAN TARP
MODEL: X MINI
CHASSIS REQUIREMENTS
CHASSIS CA/CT REQUIREMENTS: 120/130
AXLES: SINGLE
MINIMUM GVWR: 25,999 lbs
